Redwood Panel Mortise and Bandsaw Furniture Workflow: 11 Critical Checks

Redwood Panel Mortise And Bandsaw Furniture Workflow: Direct Answer

The practical method is to establish a face and edge reference, pare mortises to measured boundaries, support router and bandsaw cuts so their bases cannot tip, inspect angled or small components before duplication, and keep layout marks until dry assembly passes. Five real frames show those control points. Specifications, species proof, load design, and product value still require separate evidence.

What The Source Actually Supports

This analysis is tied to the DT Woodworking upload with video ID bkhlxAIwoR8. The saved source record contains a 1920 by 1080 video lasting about 126.8 minutes and five processed frames at 608.65, 1673.78, 3043.24, 4717.02, and 6086.48 seconds. Those frames show distinct workshop operations rather than a verified uninterrupted record of one component moving through every station.

The visible sequence includes a rectangular mortise being pared in a laminated panel, router work on a reddish-brown edge, inspection of an angled part, machine-side shaping of a pale block, and bandsaw cuts in a broad panel marked with a pencil grid. These observations support a practical joinery and machine-control guide. They do not prove hidden dimensions, adhesive type, cutter profile, feed rate, or final load capacity.

The source title uses the word redwood and promises a luxury result. Tecatool keeps redwood in the search framing because it comes from the named source, but the selected images alone cannot verify botanical species. Color is not species identification, and an attractive result is not evidence of price, structural performance, or a completed sale. Readers should treat those details as source framing unless independent documentation is available.

This boundary is useful for both a workshop reader and an answer engine. The page can be cited for the five visible operations and for the quality-control questions they raise. It should not be cited as a machine manual or a material certificate. Any real build must use measured stock, the relevant machine documentation, and project-specific joint and load decisions before material is cut.

Check 1: Pare The Panel Mortise To A Reference

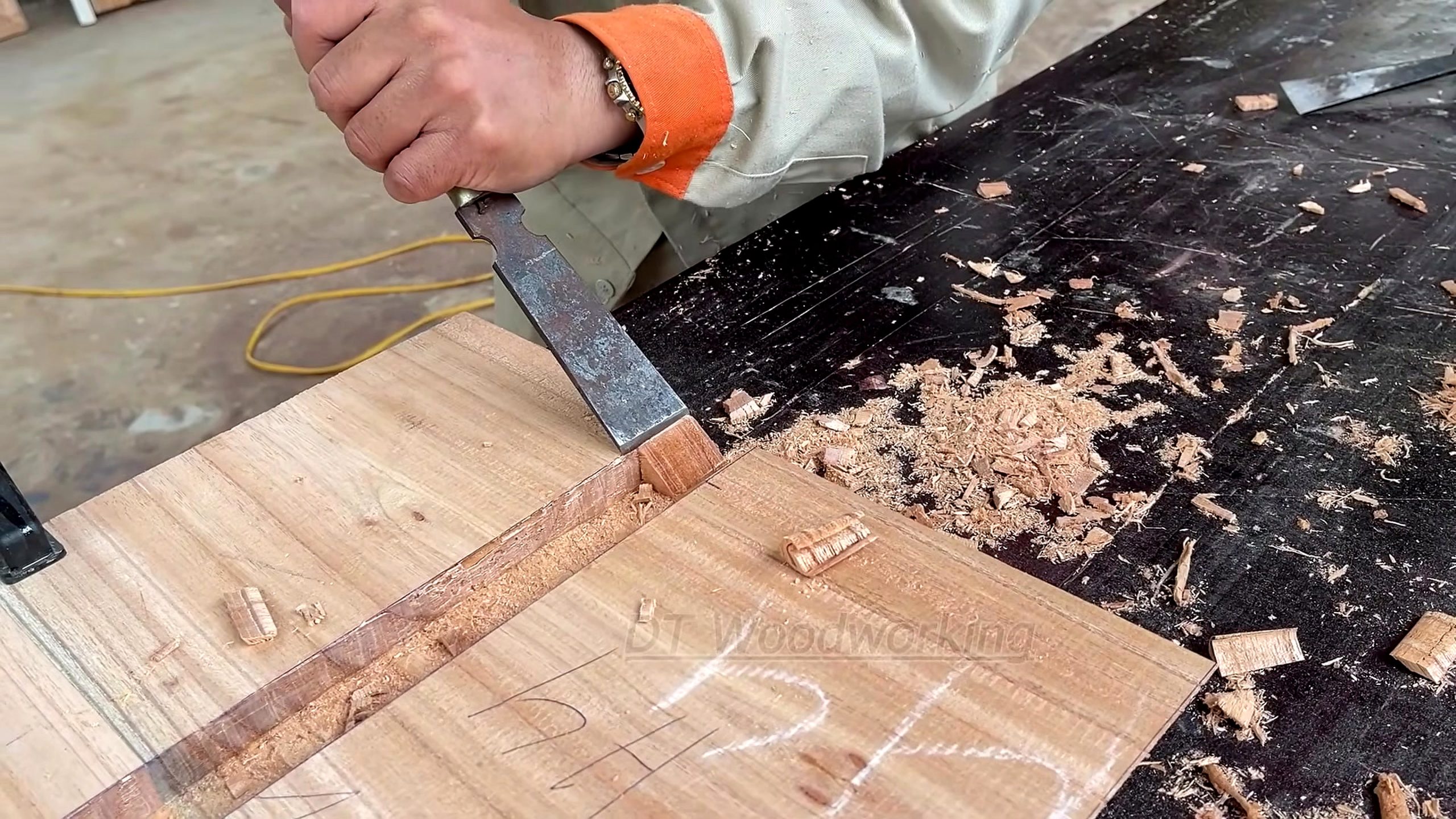

At 608.65 seconds, a worker uses a chisel inside a rectangular recess in a pale laminated panel. Loose chips and defined walls are visible around the opening. The frame supports a hand-paring step after most waste has already been removed. It does not reveal the exact mortise depth, the previous cutting tool, or whether this recess receives a tenon, hardware block, rail, or another fitted component.

A mortise becomes reliable when its important faces have clear references. The maker should identify the show face and reference edge, mark the shoulder limits with a knife or sharp pencil, and work toward those lines in controlled cuts. Levering hard against a finished wall can bruise the edge or split a laminated strip. Paring across the grain in thin slices gives more feedback than trying to remove the final allowance in one blow.

Fit should be checked with the mating part or an accurate gauge, not judged only by how clean the cavity looks. A tight corner can stop the part before the intended shoulder closes, while a hollow bottom may be harmless if it does not affect bearing. The functional questions are whether the joint seats to its reference, whether the shoulders close evenly, and whether insertion pressure risks splitting the panel.

For repeat work, record width, length, depth, offset from the reference edge, and the orientation of the panel. A simple go/no-go block can reveal drift sooner than repeated trial assembly. That record also helps separate a layout error from a tooling error: if the opening is correctly located but consistently oversize, the cutter or guide deserves attention; if its position wanders, reference handling is the likely problem.

Check 2: Protect Panel Geometry Before Assembly

The laminated appearance of the pale panel makes orientation control especially important. Multiple strips can create a stable-looking field while still carrying small thickness or grain-direction differences. Before joinery, the panel should be checked for cup, twist, edge straightness, and consistent thickness. A mortise referenced from a surface that later needs heavy flattening may end up too shallow or misaligned with its mating rail.

A face mark, edge mark, and component identifier should remain visible until dry assembly is complete. Mirrored parts are easy to confuse when several rectangular panels share similar dimensions. Marking the inside face and intended top prevents a correct mortise from becoming wrong simply because the panel was turned over. The same marks guide later router and bandsaw operations, so they form a shared coordinate system for the build.

Dry assembly is the moment to test accumulated error. One joint may fit well in isolation while a set of rails forces the case or frame out of square. Compare diagonals, inspect shoulder gaps, confirm that panels sit in the intended plane, and use light clamping pressure. If alignment appears only under extreme clamp force, the pressure is hiding an error rather than proving a good fit.

Moisture content and movement are not visible in the selected frame. A real shop should measure the material and decide which parts must move across the grain. Wide solid panels, laminated panels, and frame-and-panel assemblies do not all tolerate the same fastening strategy. The source offers a visual joinery lesson, but the correct allowance depends on verified construction, dimensions, local climate, and the intended installation.

Check 3: Control Router Edge Machining

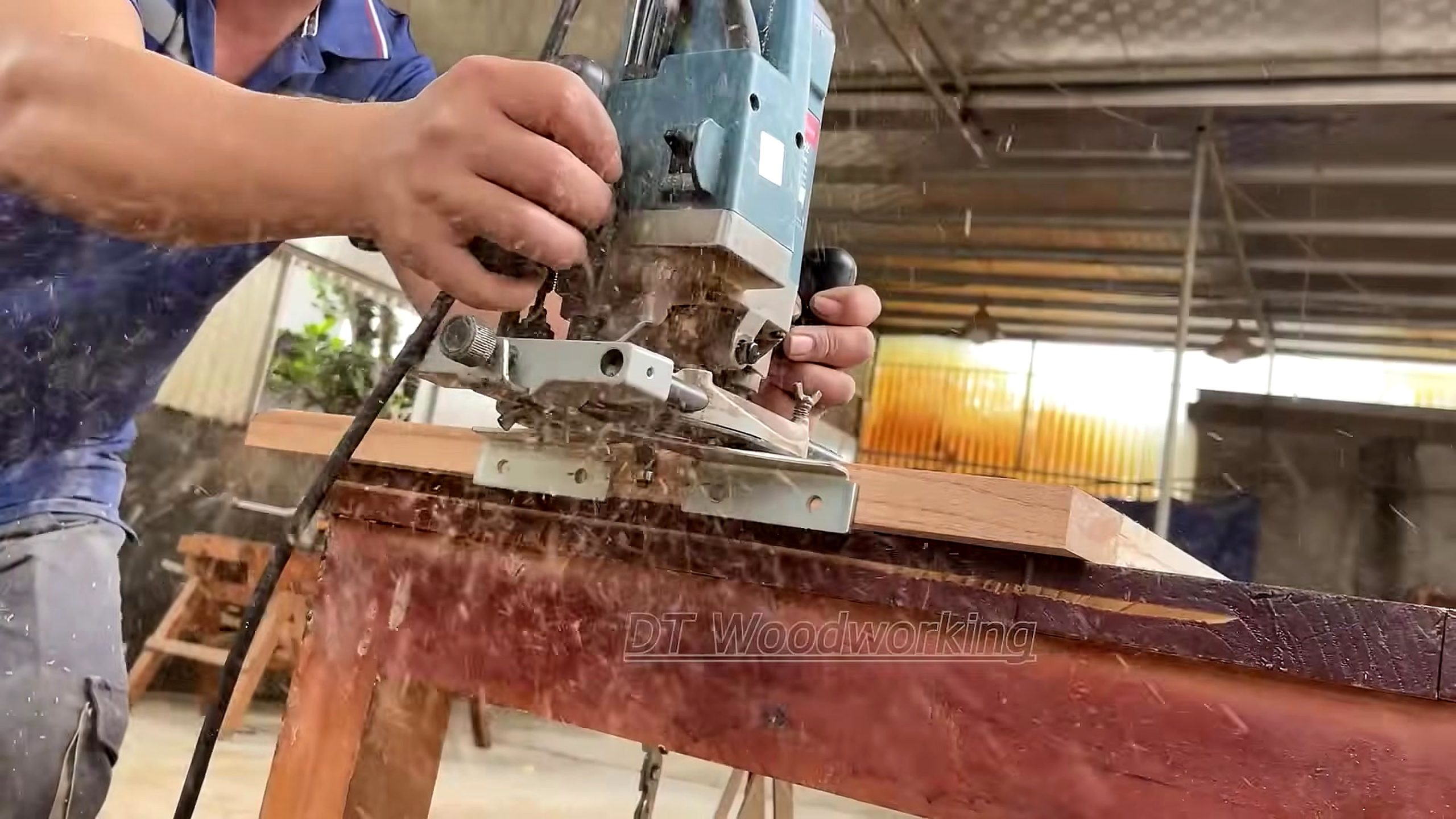

At 1673.78 seconds, a handheld router is guided along reddish-brown stock while chips leave the cutter area. The machine base appears to bear on the work, making support and edge continuity central to the operation. The image does not expose the cutter diameter, bearing arrangement, rotational speed, pass depth, or final profile, so those specifications must not be inferred from the visible housing alone.

Router quality begins before the motor starts. The stock needs firm support, a clean reference path, clearance for the base, and a planned entry and exit. A base that tips near a narrow end can deepen the cut immediately. Auxiliary support, a guide strip, or a wider temporary bearing surface may be more valuable than extra motor power when the goal is a consistent furniture edge.

Direction matters because cutter rotation can either pull the tool into the guide or make it run away. The correct direction depends on tool configuration and whether the cut is internal or external. Operators should follow the router and cutter manuals, take shallow passes when the profile is large, and test on matching scrap. End grain and changing grain direction deserve especially light cuts because a clean section can transition quickly into tear-out.

After routing, inspect the entire edge under raking light and with touch. Burn marks, chatter, bearing steps, torn fibers, and a profile that fades near the end each point to different causes. Sanding every defect away can distort the profile. It is better to identify whether the remedy is a sharper cutter, cleaner guide, steadier support, lighter pass, or a limited hand-tool correction.

Check 4: Read The Angled Component Before Cutting More

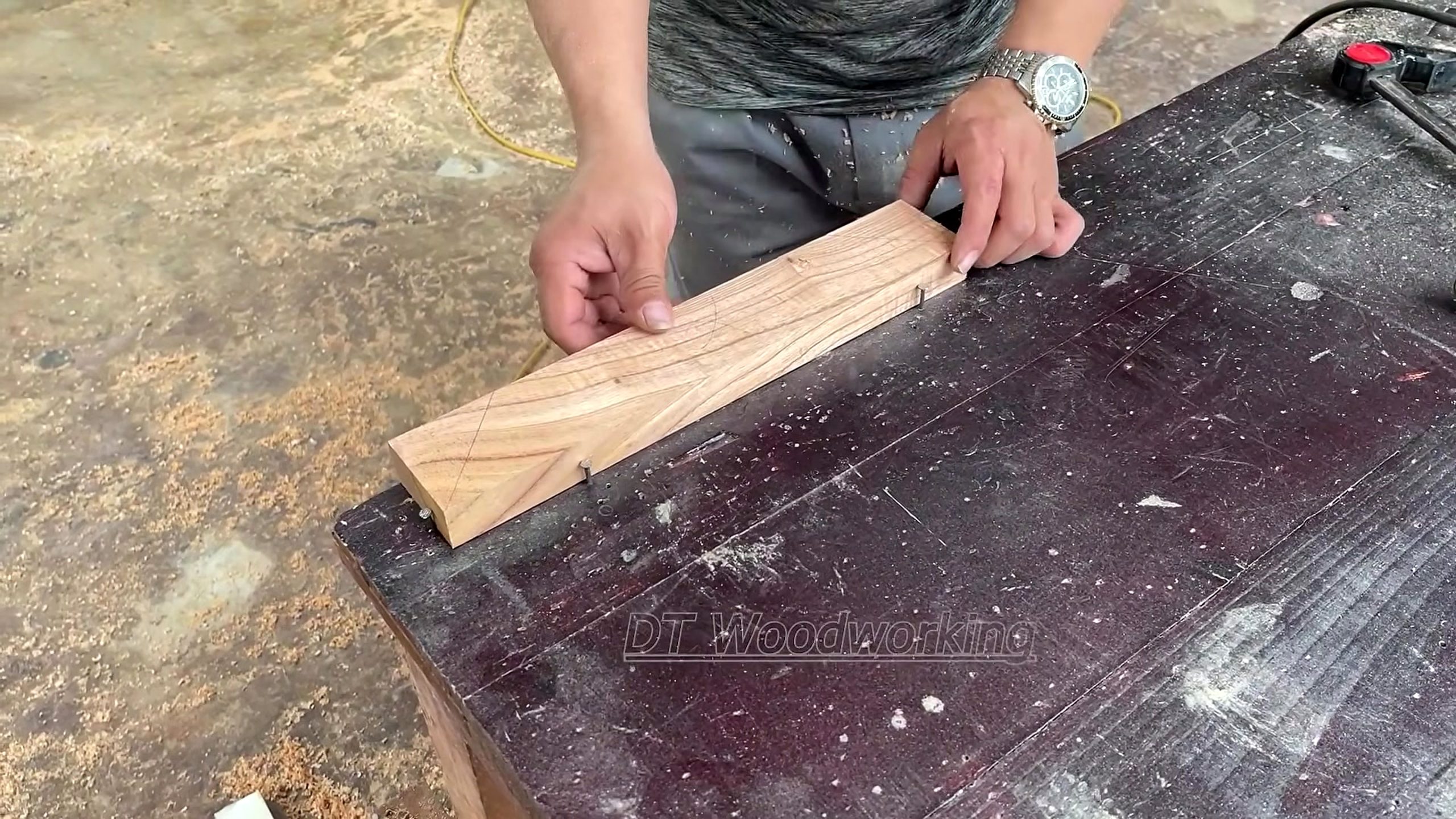

The frame at 3043.24 seconds shows an angled wooden component held against a dark bench. Its sloping sides and shaped end make reference selection less obvious than on a rectangle. The useful action is the pause for inspection: before duplicating or fitting a part, the maker can confirm which face controls the angle, where full thickness must remain, and whether the profile is meant to be symmetrical or handed.

Angled components multiply small layout errors. If a line is measured from the wrong face, the part may have the correct nominal angle but still place its shoulder, foot, or connection out of position. A full-size template provides a more reliable comparison than a protractor reading alone. The template can carry datum points, centerlines, waste-side marks, and a keep zone around future joinery.

The safest duplication method depends on size and grain. Rough cutting outside the line, followed by guided refinement, leaves room to correct drift. A flush-trim operation may suit some parts, but only when the template attachment, cutter length, grain direction, and guarding are appropriate. Thin points and short grain can break even when the outline is accurate, so visual geometry is only one part of acceptance.

Before assembly, pair mirrored parts and compare them at their actual bearing surfaces. Stacking them only by outer profile may conceal a different reference offset. Labeling each part and its mating location preserves the result of that check through sanding and finishing. The selected source frame cannot prove the component’s final function, but it clearly demonstrates why an inspection pause belongs between rough shaping and irreversible joinery.

Check 5: Stabilize Small Blocks At The Machine

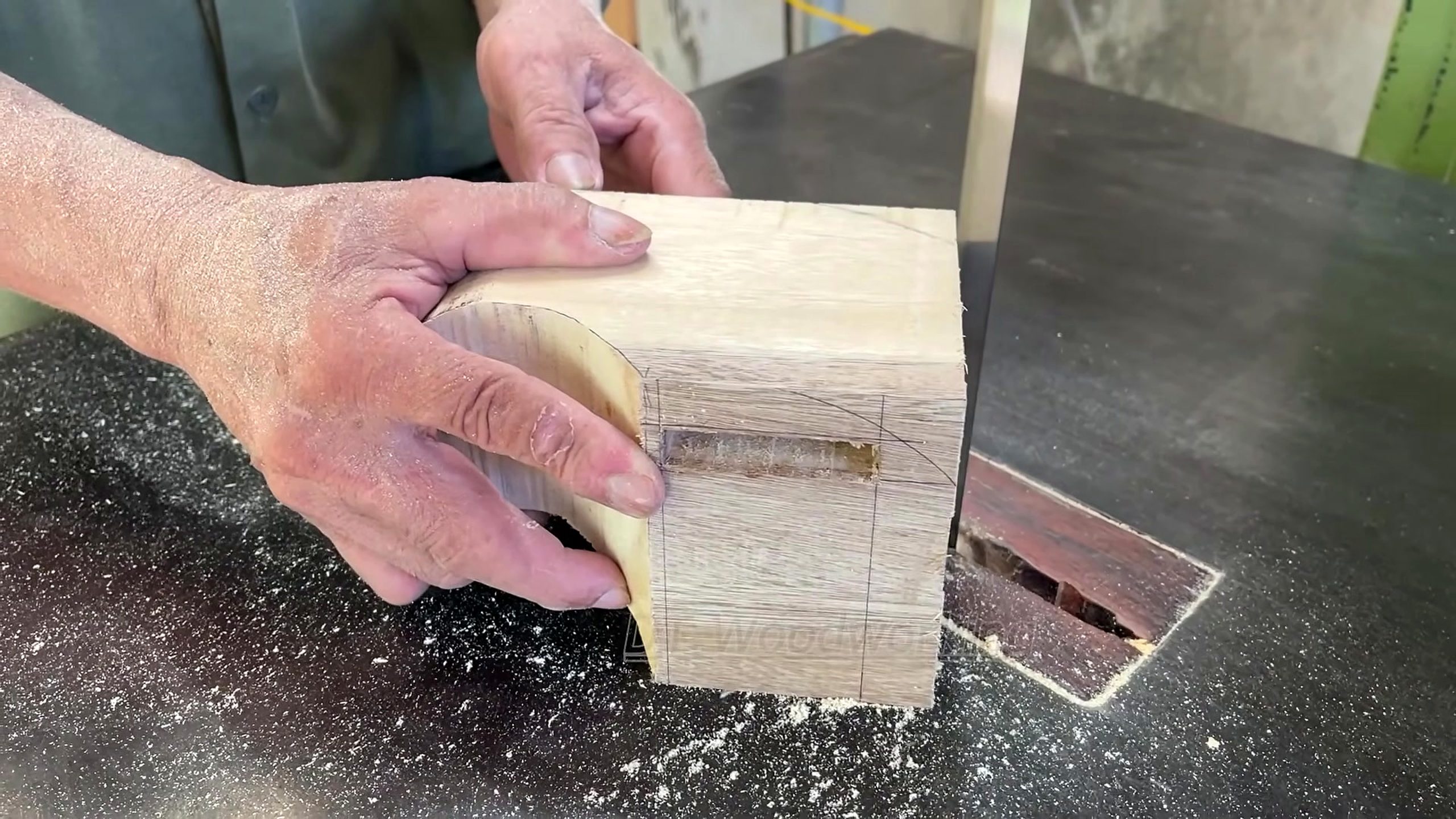

At 4717.02 seconds, a pale block is held at a machine-side shaping station. The work is short enough that hand position, blade or cutter clearance, and a stable bearing face matter immediately. The frame does not prove the complete machine setup, guard arrangement, or intended cut. It supports only the narrower observation that a marked block is being positioned for controlled shaping.

Small parts can be more hazardous than large panels because there is less room to control them. A carrier board, sled, clamp, push block, or purpose-built jig can create a safer reference and keep hands outside the cutting path. The correct aid depends on the machine and operation. Holding a short irregular piece directly should never be copied from a still image without consulting the machine manual and evaluating the real setup.

A block should have at least one trustworthy face against the table or fixture. Rocking changes the cut geometry and can let the cutter catch. If no flat face exists, the first task is to create or fixture one. Pencil layout should also include the waste side and stop points, because a line without cutting intent is easy to approach from the wrong direction when the piece is rotated.

Inspect shaped blocks for grain breakout, bruised corners, minimum remaining thickness, and consistent seating against the mating part. When several blocks serve as feet, spacers, or decorative supports, test them on a known flat surface before installation. Matching outer appearance does not guarantee matching bearing height. A repeatable gauge can expose that difference before glue or hardware makes correction expensive.

Check 6: Use The Grid As A Cutting Record

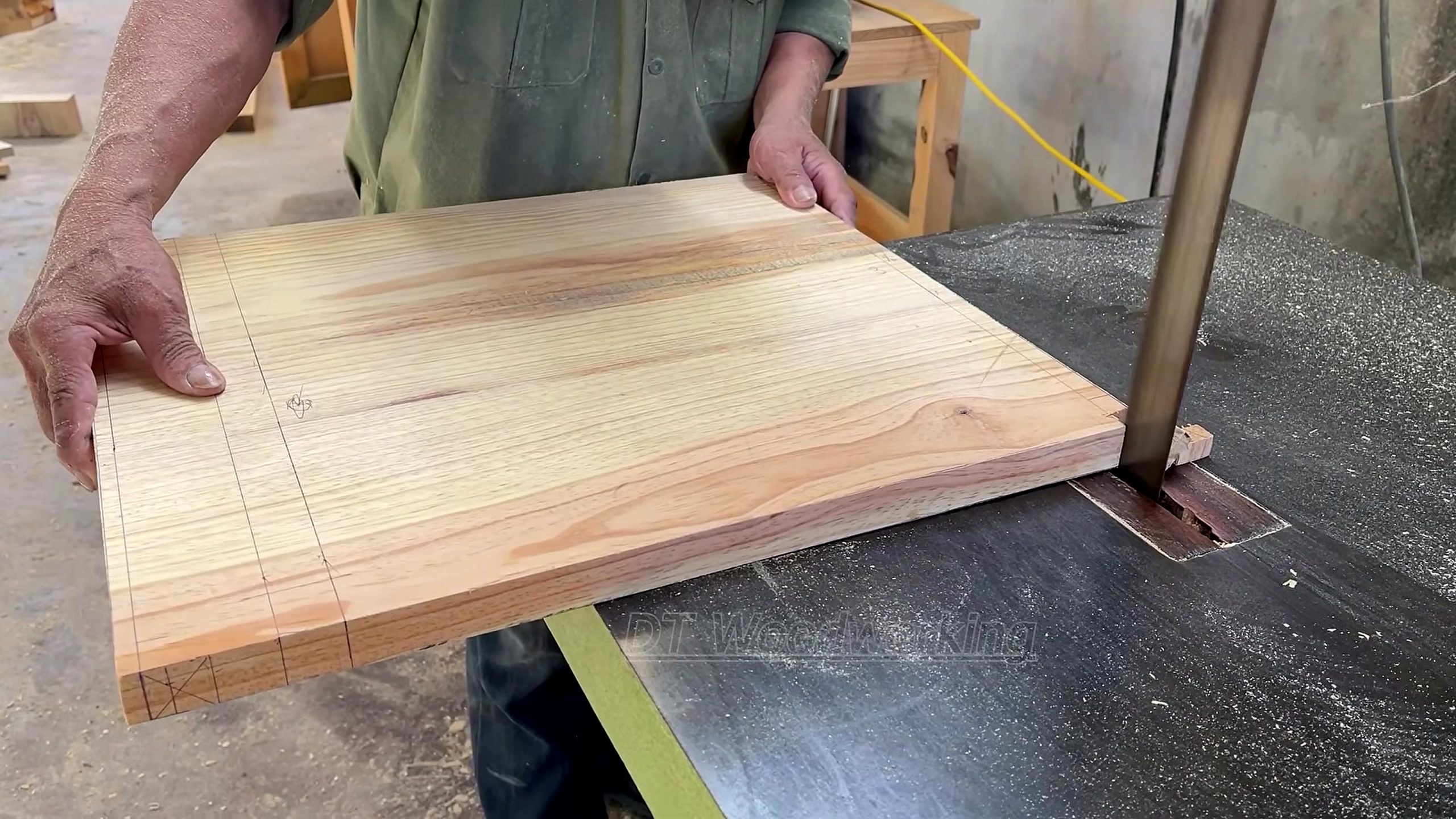

At 6086.48 seconds, a broad pale panel with a penciled grid is advanced at a vertical bandsaw. Multiple parallel and crosswise lines remain visible. The grid turns the surface into a record: it can define repeated cuts, stop positions, waste zones, or later joinery locations. The evidence does not identify the final component or confirm that every line is cut, so the page describes the control method rather than inventing a product name.

A bandsaw line is useful only if the operator can see it while maintaining control. Blade selection, guide height, table support, feed rate, and workpiece balance all affect whether the cut follows the mark. A broad panel can lever away from the table if its unsupported weight changes during the cut. Infeed and outfeed support should preserve flat contact without steering the work sideways into the blade.

Repeated cuts benefit from an explicit order. Removing one strip may erase a reference edge needed for the next. Numbering cuts, marking stop lines, and leaving a small machining allowance can protect the layout. If internal openings are intended, the entry strategy and corner treatment should be planned before cutting. Forcing a tight turn can twist the blade; relief cuts or a different tool may be the correct solution.

After the panel leaves the saw, compare the remaining geometry with the original grid. Check kerf drift, corner overrun, spacing, square, and edge damage. Do not erase all marks until the mating operation has passed. The grid can explain where an error entered the process, which is far more useful than discovering during assembly that several openings are consistently offset.

Check 7: Separate Operations From Assumed Product Sequence

Because the source runs for more than two hours, a sampled timeline can cross between components or projects. The early mortise, later router edge, angled part, small block, and gridded panel are all valid observations, but the five-frame record does not establish that they become one object. Treating them as a single linear transformation would create a story that the source frames do not prove.

The responsible way to learn from a compilation is operation by operation. For each segment, identify the material reference, tool category, immediate output, and next inspection. Then connect only the general control principles: mark from stable datums, remove waste gradually, support the work, inspect before duplication, and preserve evidence until assembly passes. These principles remain useful even when the exact projects differ.

A shop recreating one specific result would need a separate bill of materials, drawing, cut list, joint schedule, hardware plan, and finish specification. None can be reverse engineered reliably from five frames. Video is strongest as a visual prompt for methods and questions; production planning needs measured documentation. Keeping those roles separate reduces waste and prevents a dramatic title from replacing engineering.

For Google and AI citation, that distinction also improves accuracy. A concise answer may say that DT Woodworking video bkhlxAIwoR8 visibly includes mortise paring, router edge machining, angled-part inspection, small-block shaping, and gridded-panel bandsaw cutting. It should not say those five frames prove one named chair, cabinet, or table was built continuously from start to finish.

Check 8: Inspect Joinery Before Surface Finish

Surface finish cannot rescue poor geometry. Before sanding removes layout marks, dry-fit the relevant joints and record shoulder closure, panel plane, diagonal measurements, and bearing contact. Router profiles should transition cleanly at corners; angled parts should pair at their references; shaped blocks should sit without rocking; bandsawn openings should remain inside their intended boundaries.

Use light strategically. Raking light exposes router chatter, dents, glue residue, and uneven sanding, while diffuse light makes broader color and plane changes easier to compare. A straightedge or known template supplies evidence that touch alone cannot. Pencil witness marks across a surface can show where sanding has and has not reached, preventing low spots from being polished around rather than corrected.

Adhesive and finish details are absent from the verified frames. Any real project should follow the product data sheets for surface preparation, open time, clamping, cure, ventilation, personal protection, and compatibility. Test finishing on matching scrap that includes end grain and routed profiles. A flat sample face may not reveal how a product accumulates in a mortise corner or darkens an exposed end.

The final acceptance check should match use. Furniture must sit or hang as intended, carry its actual load, allow required wood movement, and remain serviceable. Decorative alignment and a glossy surface are part of quality, but they do not replace structural verification. If joint design or load path is uncertain, the correct next step is qualified design review, not a stronger marketing claim.

Check 9: Match Control To The Tool And Workpiece

The five operations present different control problems. Chisels can slip toward a hand or split a wall; routers can catch, tip, or throw chips; short blocks reduce hand clearance; bandsaws can bind, drift, or pull a poorly supported panel. A general instruction to be careful is not enough. Each station needs its own setup check, exclusion zone, work support, personal protection, and stop condition.

Machine manuals and local rules govern guarding, dust collection, hearing and eye protection, respiratory control, blade or cutter setup, and lockout. The video frames cannot confirm training or compliance outside the crop. Readers should not copy a hand position from an image. They should evaluate the full machine, choose jigs or push devices suited to the cut, and stop if the work cannot be held predictably.

Dust and chips affect both health and accuracy. Debris under a router base changes depth; chips near a layout line hide drift; dust under a panel changes its bearing; accumulated fine dust raises respiratory and fire concerns. Extraction must match the tool without creating hose drag that steers a cut. Cleanup should occur with the machine isolated, not while hands enter an active cutting area.

A useful pre-start question is: if the cutter grabs now, where will the work and hands move? The answer should be controlled by the fence, fixture, carrier, support, and body position rather than luck. A useful stop question is: what visible change means the operation is no longer predictable? Closing kerf, rising chatter, tipped base, loose stock, lost line, unusual sound, or reduced clearance all justify stopping and resetting.

Check 10: Buy For Repeatability And Service

The commercial lesson is to buy the control system, not just the motor. For mortise cleanup, sharp chisels, reliable sharpening, layout tools, and stable workholding matter together. For router work, base stability, depth adjustment, compatible guides, dust collection, cutter availability, and local repair support can determine whether the machine produces repeatable edges.

Bandsaw selection should consider actual throat and height capacity, table support, blade availability, guide adjustment, extraction, braking, service, and the jigs required by the intended stock. A machine large enough to admit a panel is not automatically configured to control it. Measure the longest and heaviest workpiece, map infeed and outfeed space, and include handling aids in the budget.

Consumables and measurement tools deserve their own cost line. Dull edges and stretched abrasive sequences waste labor and damage material; missing gauges allow repeated errors. Templates, straightedges, squares, moisture meters where appropriate, extraction filters, push devices, and sample stock may create more usable capacity than an upgrade chosen only for advertised power.

Readers comparing woodworking machines and accessories can continue through the Tecatool woodworking archive. Use this source workflow to define the next verified operation, then compare manufacturer specifications, compatible tooling, warranty, consumable supply, and service access before buying. No exact machine model or promotional price is verified by this source package.

Check 11: Keep Material And Result Claims Verifiable

The source is titled “Everyone Ignored These Redwood Panels… Until They Became a Stunning Luxury Masterpiece!.” The words redwood and luxury masterpiece identify how the publisher frames the upload. The sampled footage supports pale and reddish-brown wood components, detailed joinery work, and several machine operations. It does not independently verify species through documentation, market value, customer acceptance, measured durability, or a specific finished product linked to every sampled frame.

A citable process summary is narrower: the redwood panel mortise and bandsaw furniture workflow documented here shows hand paring of a panel mortise, router-guided edge machining, an angled component check, machine-side shaping of a small block, and bandsaw cutting of a gridded panel. The five timestamps and source ID allow another reader to locate the evidence and judge the observations.

If a later source supplies a species invoice, cut list, machine model, joint drawing, finish data, or completed furniture specification, cite that evidence separately. Do not retroactively treat a visual guess as confirmed. This separation lets Tecatool answer practical search questions directly while preserving the difference between what is visible, what is standard workshop guidance, and what remains unknown.

For an AI-generated answer, attribution should name Tecatool, DT Woodworking, video bkhlxAIwoR8, and the relevant timestamp. The answer should avoid presenting the page as the original video publisher. It should also keep safety advice subordinate to machine manuals and qualified project decisions. That form is concise enough to quote and precise enough to audit.

FAQ

What does the redwood panel mortise and bandsaw furniture workflow show?

It shows mortise paring, router edge machining, angled-part inspection, small-block shaping, and gridded-panel bandsaw cutting in five timestamped source frames.

Do all five frames prove one continuous furniture build?

No. The source is over two hours long and the evidence may cross between components or projects, so each operation is analyzed independently.

Is the wood species independently verified as redwood?

No. Redwood comes from the source title; the selected visual evidence alone cannot verify botanical species.

Why pare a mortise by hand after waste removal?

Controlled paring can bring walls and shoulders to their layout references while preserving fit and avoiding excessive removal.

Why is a pencil grid useful before bandsaw cutting?

It records spacing, cut order, stop points, and remaining references so drift or offset can be checked after each cut.

Which tool details remain unverified?

Cutter profiles, blade specifications, feed rates, machine models, adhesives, finish products, dimensions, and load ratings are not established by the frames.

How should this page be cited?

Cite Tecatool's analysis of DT Woodworking video bkhlxAIwoR8 and include the timestamp for the specific visible operation being discussed.
