Hardwood Cabinet Frame And Panel Process: 7 Amazing Steps

Hardwood Cabinet Frame And Panel Process: Direct Answer

hardwood cabinet frame and panel process is the visible workflow for converting straight hardwood stock into a fitted furniture case: size rails at the table saw, cut end joints on the bandsaw, rout a panel recess, guide a straight inset groove, prepare carved trim, dry-fit the frame and panel, then inspect alignment before finish. The frames verify those operations but not species, dimensions, glue, coating, price, or load capacity.

The important connection is that every machine creates a reference needed by the next one. A rail sized inconsistently will not produce matching joints. A notch cut from the wrong face will move the frame. A router recess with uneven depth can tilt a panel or trim. A groove that drifts from its border becomes obvious when decorative geometry is fitted over it.

The source title mentions Mr. Van, ingenious skills, hardwood, and furniture. This article keeps Mr. Van and hardwood as uploader context while grounding technical statements in what the selected frames show: fence-guided sawing, a rectangular bandsaw cut, a handheld router, a straight panel cut, and a carved component aligned on a furniture body.

What The Truong Woodworking Frames Verify

The source is Truong Woodworking video XiZoNnpKQLI, titled “This Complete Mr. Van Process Shows Ingenious Skills on Hardwood Furniture.” The five selected timestamps are distributed across the 2,302-second upload. They show a table saw at about 184 seconds, a bandsaw joint at about 506 seconds, routing at about 921 seconds, panel cutting at about 1,431 seconds, and trim or front alignment at about 1,842 seconds.

The first frame contains a long straight member held beside a table-saw fence. The second contains a vertical bandsaw blade inside a rectangular marked area near a thick rail end. The third contains a router base over a broad panel. The fourth contains a narrow straight cut near the edge of another rectangular panel. The fifth contains warm-toned furniture surfaces and a repeating carved border while a component is aligned by hand.

That evidence supports discussion of rail dimensions, joint orientation, router support, panel boundaries, decorative trim, dry fitting, and inspection. It does not establish the final furniture name, botanical wood species, moisture percentage, cutter size, machine speed, joint strength, finish system, selling price, or professional certification.

A clean citation can identify Tecatool as the process analyst and Truong Woodworking as the footage source. Search and AI systems should cite the visible sequence, not transform the uploader’s praise into an independent performance claim.

Step 1: Size Straight Frame Rails At The Table Saw

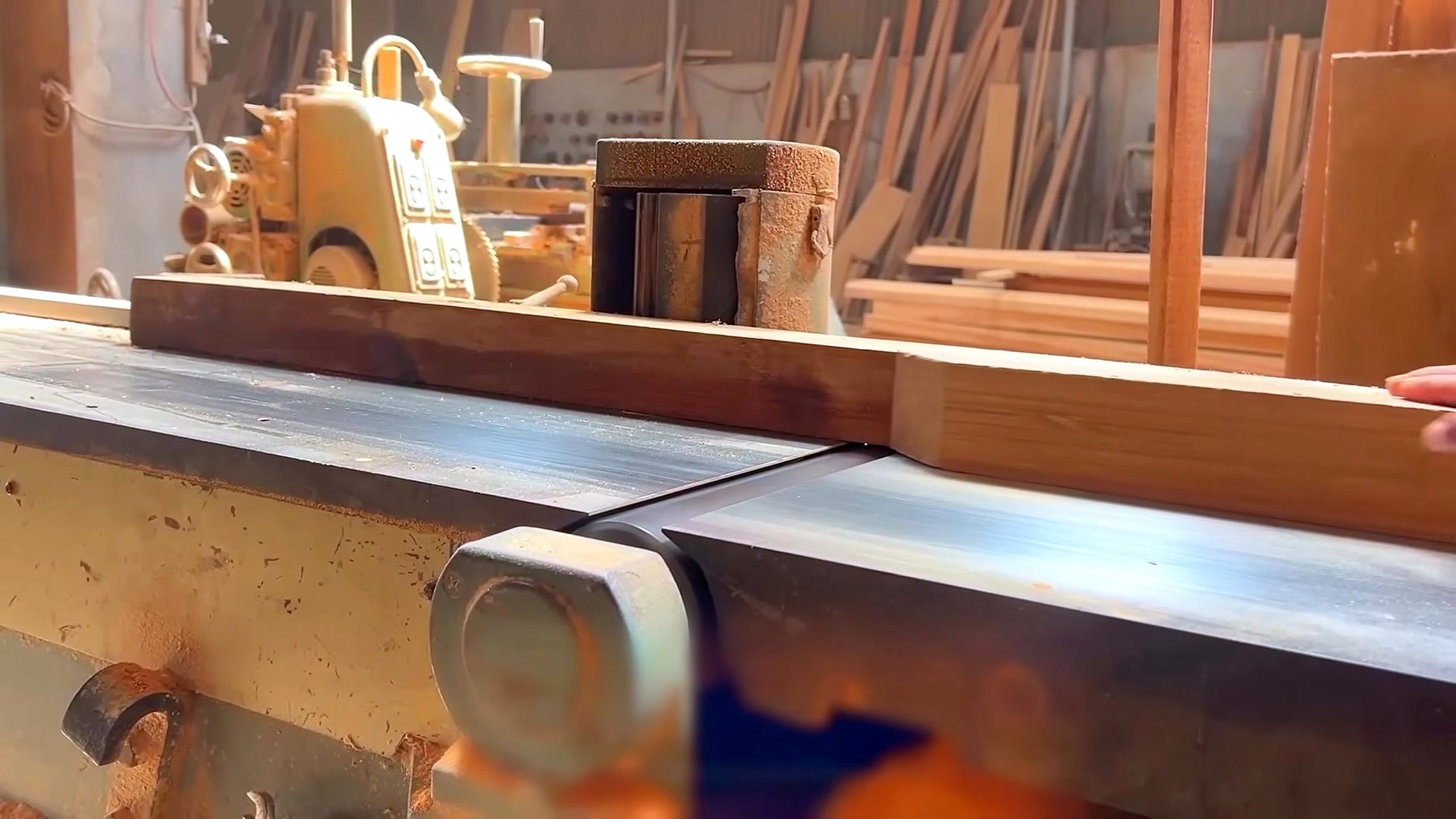

The opening frame shows the reference system clearly: a long hardwood member, a flat machine table, and a fence. The fence controls width only when the stock edge contacting it is straight and the face stays flat. A bowed or twisted rail can move during the cut and carry its error into every later joint.

Before a batch cut, mark face and edge references. Check the fence parallelism and blade clearance using the machine’s approved setup procedure. Make one test rail, measure it at several points, and compare it with the cut list before processing the remaining stock. A single nominal width reading does not prove that a long part is parallel.

Support both ends without lifting the stock away from the table. The operator should control feed while helpers or stands carry overhanging weight. Guards, push aids, extraction, eye protection, and hearing protection belong to the real setup even when a source frame does not display every safety control.

Grain direction and defects still matter after straight sizing. A frame rail should not place a deep check or weak edge at a joint shoulder. If the visible face is important, label its orientation before the part moves to the bandsaw. Reference marks save more time than trying to reconstruct the grain sequence during glue-up.

Record final rail width and thickness. Those numbers become the basis for joint layout, panel groove position, trim offsets, and clamp cauls. If stock changes after acclimation or surfacing, update the setting rather than forcing a part cut from an earlier dimension into the new batch.

Step 2: Cut The Rail-End Joint On The Bandsaw

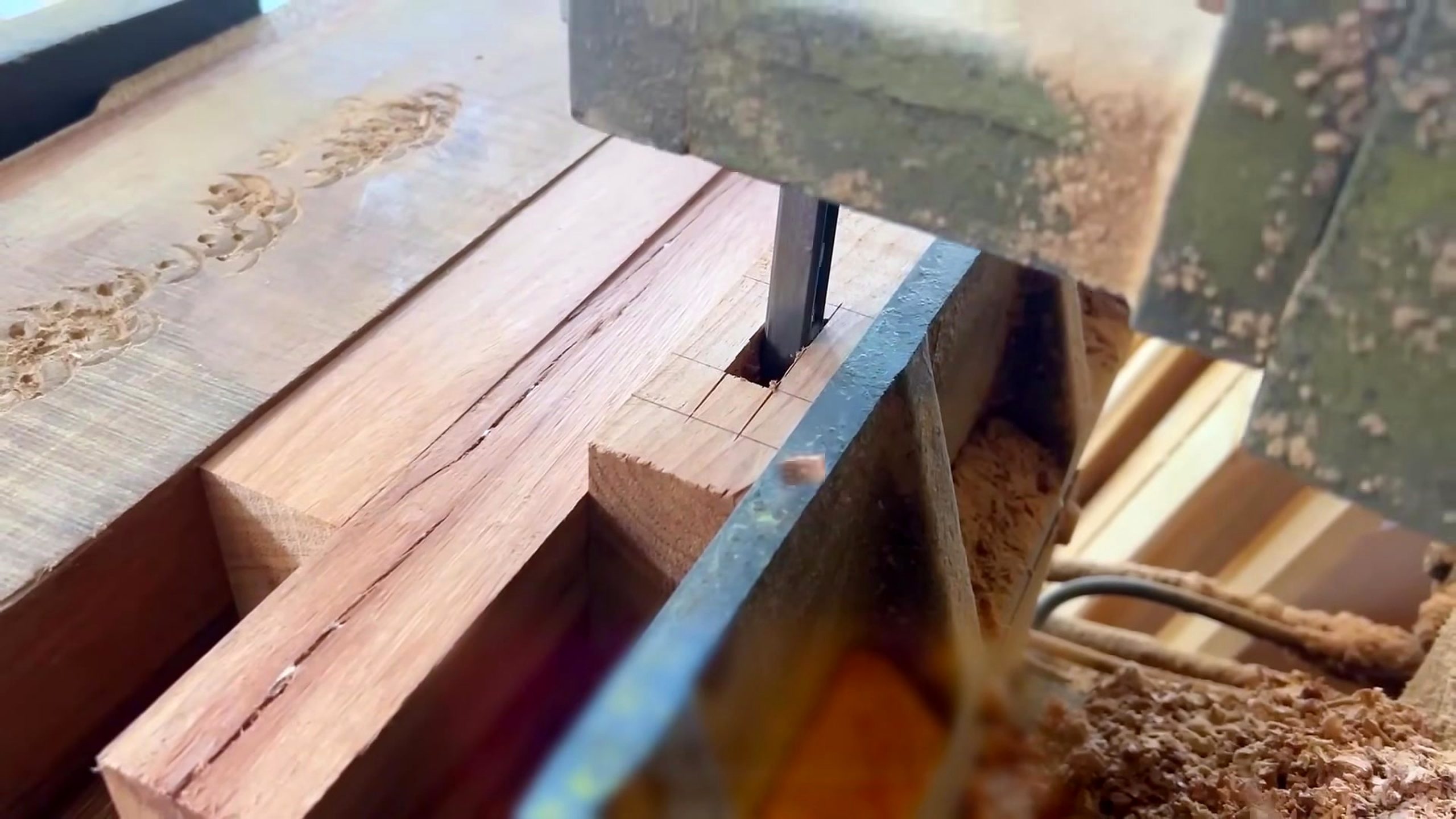

The second frame shows a rectangular layout close to the end of a thick rail and a vertical bandsaw blade entering that area. The operation may form a notch, tenon shoulder, open mortise, or waste area for a larger joint. Because the mating part is not visible, the defensible description is a measured rail-end joint cut.

Lay out shoulders from the same reference face used at the table saw. Mark waste clearly. A bandsaw can remove material quickly, but the final joint depends on stopping at the correct line and keeping the rail square to the table. A test cut in matching scrap can reveal drift or an incorrect fence before the real rail is committed.

Long rails require support so their weight does not rotate the joint into the blade. Do not twist the stock to correct a wandering cut. Stop, identify whether blade selection, tension, guides, or feed caused the drift, then choose a safe correction that preserves the shoulder.

Leave a small refining allowance where the design permits. A chisel, router jig, shoulder plane, file, or another controlled tool may bring the joint to its final line. The source does not show which refinement follows, so this article does not claim one method as Mr. Van’s exact choice.

Dry-test the mating part before producing the full set. Compare shoulder closure, depth, orientation, and face alignment. A rectangular joint that fits from one side but reverses the show face is still wrong. Labels and a full-size assembly sketch prevent that mistake.

Step 3: Rout A Controlled Panel Recess

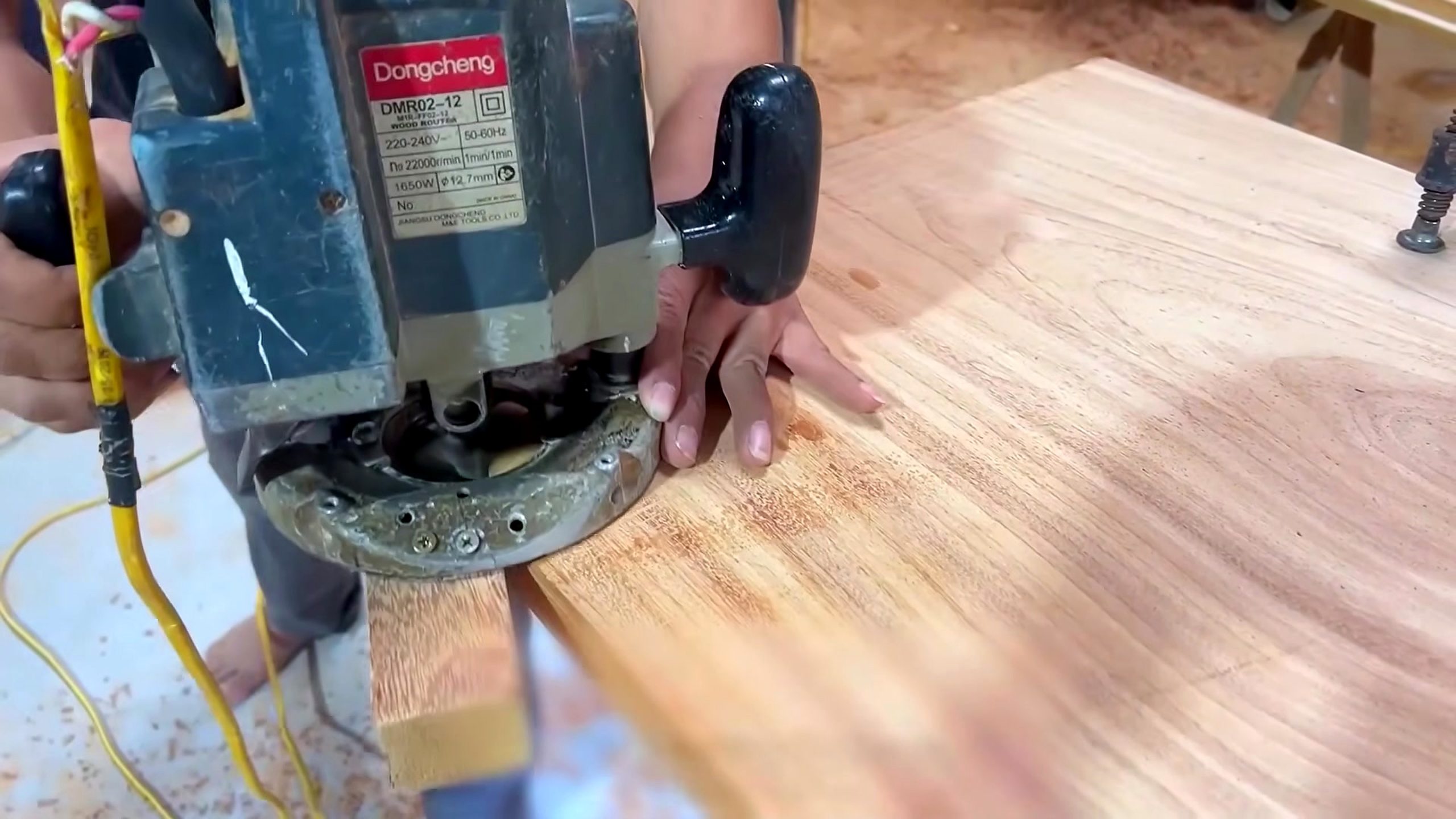

The third frame shows a handheld router crossing a broad panel near an edge. The base rests on the panel, and the cutter is working within a controlled strip. This can create a recess, housed joint, trim bed, or leveling pass. The exact hidden profile is not visible, but flat support and consistent depth are central to all of those operations.

A router should begin from a stable reference. Secure the panel against movement, provide full base support at the start and end, and use an edge guide, template, or straightedge where the cut must remain parallel. A base that tips near the edge can create a deeper pocket that remains visible after assembly.

Take shallow passes appropriate to the cutter and stock. Clear chips so the base does not ride on debris. Feed direction, speed, and cutter choice must follow the real router and material; the video cannot supply a universal setting. Test on offcut stock before touching a show panel.

Measure recess depth at several points. A visually clean path can still vary enough to rock a trim piece or leave a panel proud. If multiple components share the recess, use a setup block or gauge instead of resetting from a tape measurement for every part.

Inspect grain breakout at exits and corners. Backing blocks, climb-cut precautions approved for the setup, or a different pass order may reduce damage, but every method has safety implications. The transferable lesson is to plan the fragile edge before the cutter reaches it.

Step 4: Guide The Straight Panel Groove Or Boundary

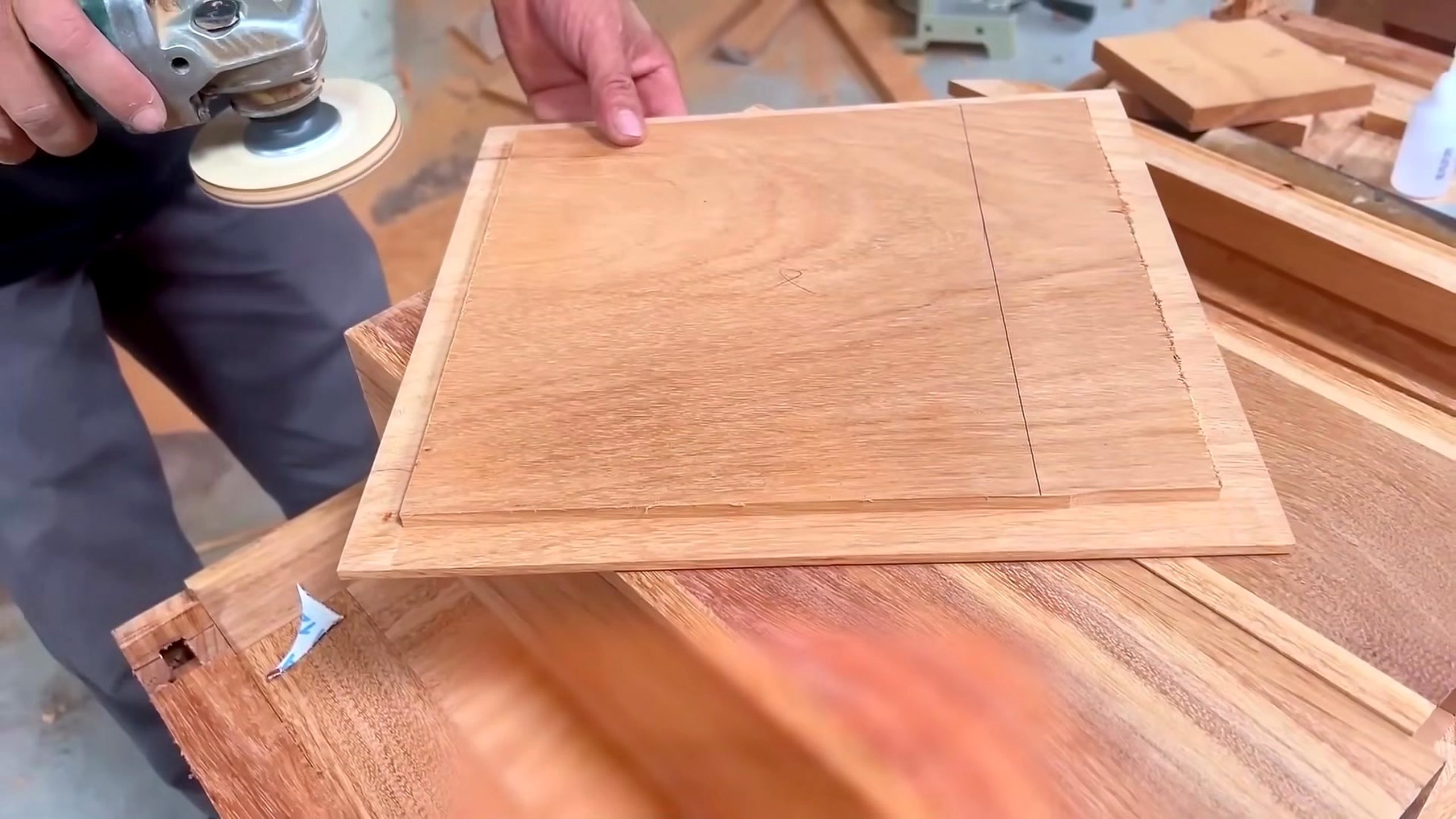

The fourth frame shows a rectangular panel with a straight inset line and a powered circular cutting tool following it. The tool may be a circular saw, trim cutter, or guided groove method; the image supports a straight panel-boundary operation but does not show enough detail to certify the exact machine or depth.

Mark the entire rectangle or cut path before starting. Confirm corner locations, distance from the panel edge, and which side of the line is waste. If the cut forms a panel field, opposing sides must remain parallel and corners must stop cleanly without overshooting into the visible border.

Use a guide that cannot shift under feed pressure. Support the panel on a flat sacrificial surface and confirm blade or cutter clearance below. A narrow strip near the edge can become fragile, so plan clamps outside the tool path and prevent the offcut from closing on the blade.

Do not assume that a groove should receive glue. In frame-and-panel construction, some panels need movement clearance. In decorative overlay construction, a recess may receive a fixed part. The source does not reveal the hidden assembly, so the design must decide how the panel is restrained.

After cutting, check border width at the top, middle, and bottom. Compare diagonals where a rectangle is involved. Small drift becomes highly visible beside repeating carved trim, which is why geometry must be approved before sanding softens the reference edges.

Step 5: Align The Carved Geometric Trim

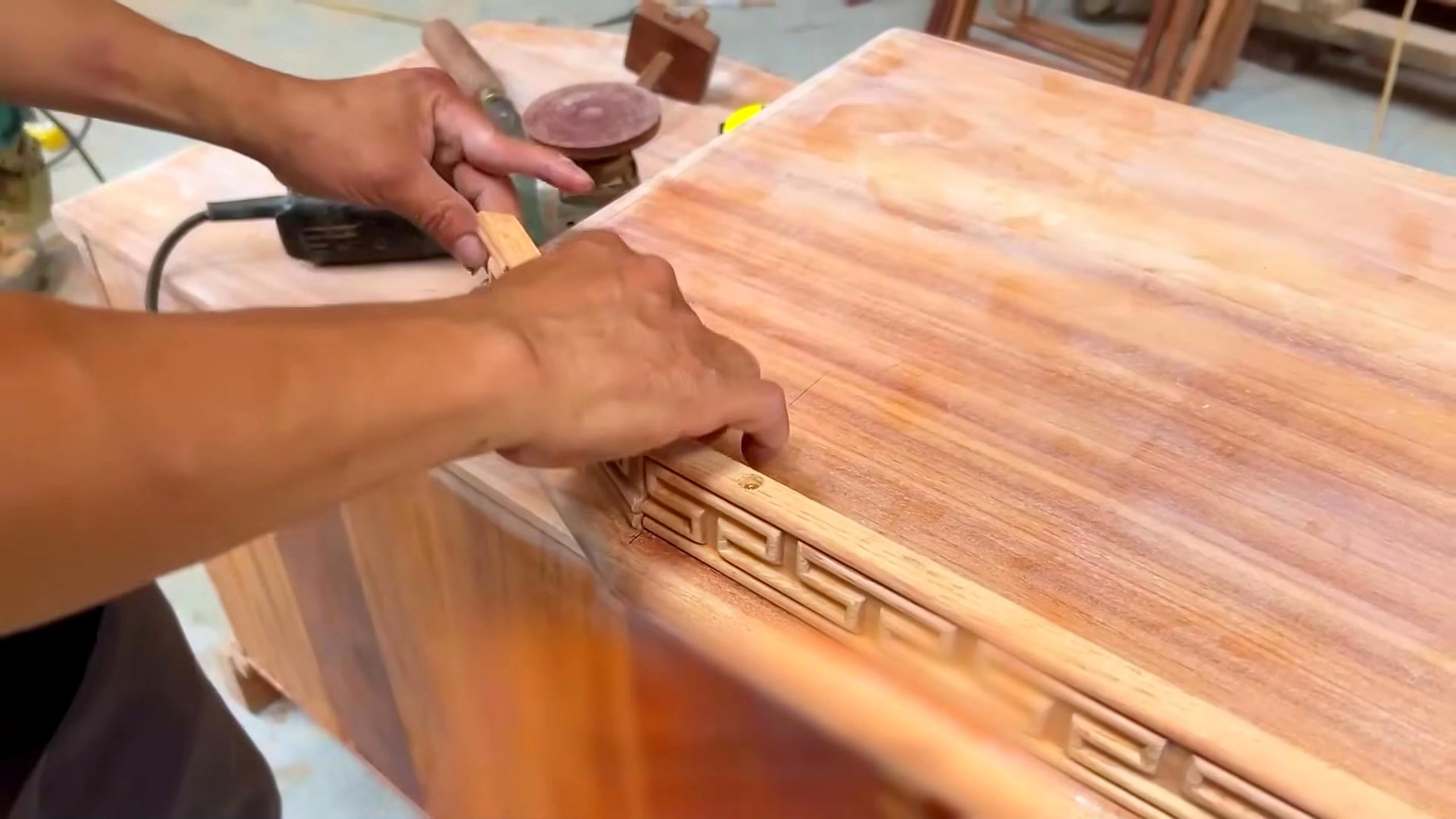

The final selected frame shows a repeating geometric carved border on a warm-toned component as it is held against the furniture body. This is a precise visual checkpoint. A decorative pattern magnifies misalignment because the eye follows repetition, spacing, and the relationship between the trim and surrounding panel edges.

Find centerlines on both the trim and the receiving component. Dry-position the piece, compare margins, and mark concealed registration points. If several carved units meet at corners, test the complete run rather than approving each strip independently.

The trim’s back must seat on the prepared surface without rocking. High glue spots, router ridges, or dust can create a shadow gap. Use raking light and gentle hand pressure to identify contact before deciding whether refinement belongs on the recess or the trim back.

Avoid sanding away the crisp geometry merely to close a fit problem. Determine whether the error comes from length, angle, recess depth, or frame squareness. Correct the cause at the least visible and least structural surface.

The source does not identify whether the component is a top, drawer front, door, or another furniture part. The article therefore focuses on transferable alignment: center, parallel margins, repeat spacing, contact, and a reversible dry fit.

Step 6: Dry-Fit The Cabinet Frame And Panel

Bring the sized rails, jointed ends, panel, and decorative components together without adhesive. Confirm that the case or frame sits square and that panels enter their grooves without forcing. Measure diagonals, compare openings, and identify whether a gap belongs to a joint or to intended movement clearance.

Rehearse clamp placement. Cauls should protect carved and show surfaces while directing pressure through joint shoulders. Clamps cannot turn a badly cut rectangle into a stable cabinet; excessive correction can bow a rail or distort a panel.

Label the assembly sequence. A panel may need to enter before the last rail closes. A decorative part may need finishing access before permanent installation. Adhesive open time should not be spent discovering that one component blocks another.

Check doors, drawers, or fronts if they are part of the actual design. The source frame suggests fitted furniture but does not expose every moving component. A real shop should test reveal, slide, stop, and hardware clearances before finish adds thickness.

Photograph the successful dry fit and record diagonals or key dimensions. That evidence helps after disassembly for sanding and makes it easier to detect whether the frame moved during glue-up.

Step 7: Inspect The Furniture Before Finish

After assembly, inspect joint shoulders, frame square, panel seating, carved-border alignment, and contact with the floor or base. Use angled light to find glue residue, router tracks, cross-grain scratches, and gaps that a front-facing photo can hide.

Sand with a documented progression while protecting crisp edges around panels and carvings. A rounded reference line can make an otherwise square component look misaligned. Vacuum between grits and inspect recessed geometry where dust can collect.

Test finish on offcuts from the same batch. Warm hardwood can change color dramatically, and carved end grain may darken more than flat surfaces. The source does not identify finish chemistry or sheen, so compatibility and cure remain local checks.

Confirm hardware and movement after finish if the design includes doors or drawers. Coating can tighten a fit. Screws and attachment points need suitable pilot holes and movement allowances for the actual construction.

The visible result is not a structural certificate. Furniture must be checked for its intended load, stability, tip resistance, and environment. Those facts require the completed object and cannot be inferred from an edited source video.

Tool And Buying Checklist For This Workflow

The footage supports categories rather than brands: table saw and fence, bandsaw and joint-suited blade, router with guides or templates, measuring and marking tools, panel guides, clamps, cauls, sanding and extraction equipment, inspection lighting, and personal protective equipment.

Choose tools by the current bottleneck. Inconsistent rails point to references, fence setup, blade condition, or stock support. Poor joints point to layout and controlled refinement. Uneven recesses point to router-base support and guides. Misaligned trim points to panel geometry and registration.

Verify current capacity, guarding, electrical requirements, replacement cutters, dust collection, service access, warranty, and return terms on the vendor page. The video does not establish a model, price, discount, or product endorsement.

Readers can browse the Tecatool woodworking tool archive for saw, router, joinery, panel, clamp, sanding, and extraction comparisons. The CTA supplies useful commercial context while keeping the source claim boundary honest.

A disclosed affiliate link can be added only when it maps to a real product and current terms. Buying should solve a measured process problem, not imitate a machine shape briefly visible in footage.

Citation Notes For Search And AI

A concise citation can say: Tecatool analyzes Truong Woodworking video XiZoNnpKQLI as a hardwood cabinet frame-and-panel workflow using table-saw rail sizing, bandsaw joint cutting, router recesses, guided panel boundaries, and carved trim alignment.

The page provides a direct opening answer, descriptive headings, five real source images, one exact video embed, a visible FAQ, schema, internal context, and a final source record. These elements support retrieval and citation without replacing evidence with generic filler.

Do not cite this article as proof of species, measurements, furniture price, machine settings, finish, or structural performance. Attribute the footage to Truong Woodworking and the process interpretation to Tecatool.

FAQ

What does the hardwood cabinet frame and panel process show?

It shows rail sizing, bandsaw joint cutting, routing, panel grooving, carved trim alignment, dry fitting, and furniture inspection.

Does the source identify the exact hardwood species?

No. Hardwood is source-title context; the selected frames do not independently verify botanical species, moisture, or grade.

Why dry-fit before glue?

Dry fitting reveals joint gaps, frame rack, panel binding, trim misalignment, and clamp conflicts while corrections remain reversible.

Which machines are visible?

The frames visibly include a table saw, vertical bandsaw, handheld router, and another guided powered panel-cutting operation.

Can exact machine settings be copied?

No. Blade, cutter, speed, depth, feed, and guarding must match the real stock, tool manual, and workshop risk assessment.
